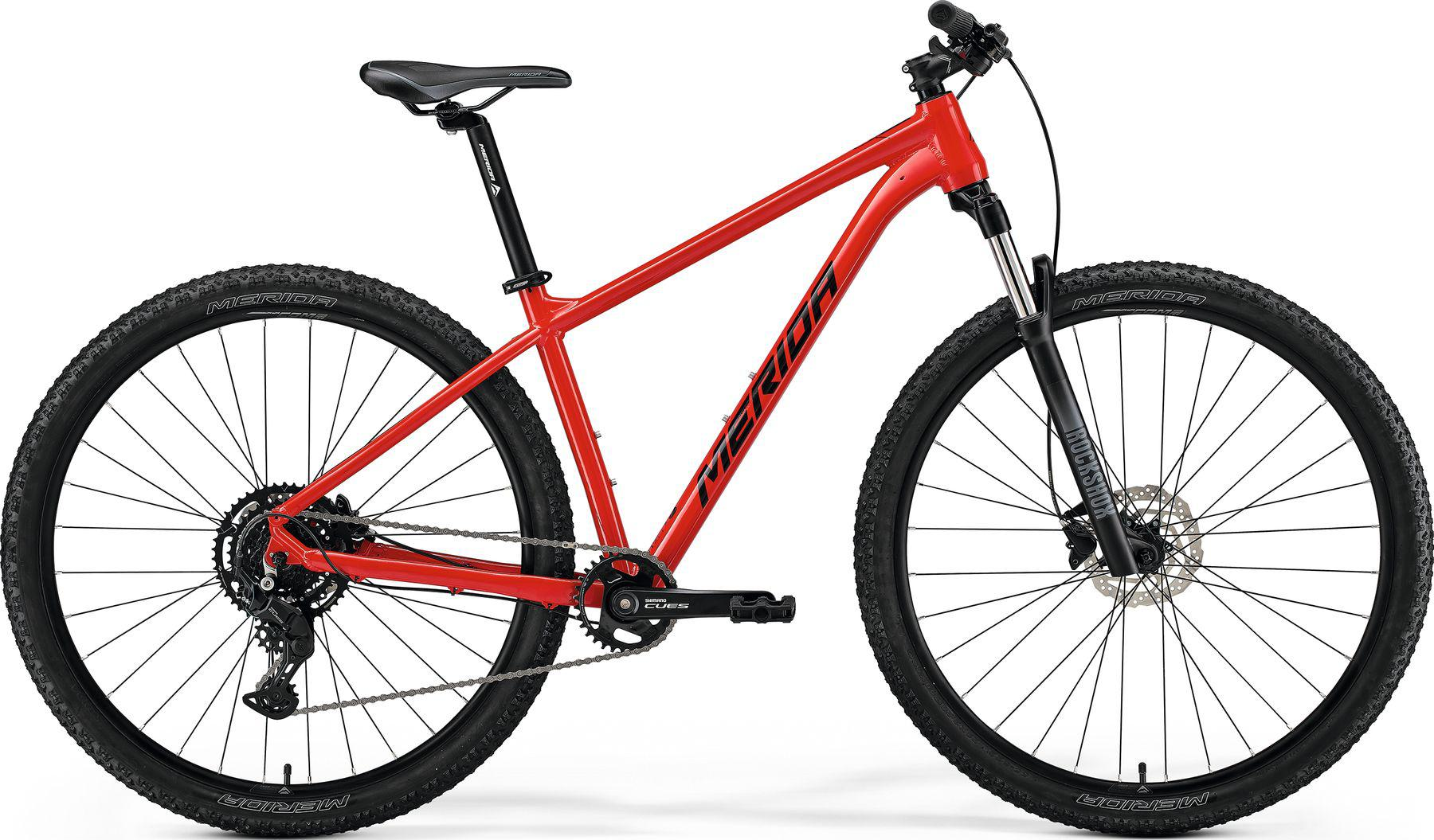

MeridaBIG.NINE 80

We're sorry.

The checkout for this seller is not enabled. Please reach out to the seller directly using the form below, or visit them in store at the listed address.

Questions and Answers

Aluminium
Shimano Cues
29"
Diamond
Disc Brakes

General

  • FrameBIG.NINE TFS IV | * material: aluminum * 29x2.25" max. wheelsize * 135x9mm axle standard * BSA bottom bracket standard
  • Frame materialAluminium

    • Brakes

  • Rear BrakeShimano MT200 | * hydraulic brake * 2 piston
  • Rear RotorShimano RT10 | * 160 mm
  • Front BrakeShimano MT200 | * hydraulic brake * 2 piston
  • Front RotorShimano RT10 | * 160 mm

    • Wheels & Tires

  • Tube29*2.2 A.V
  • SpokesBlack steel
  • WheelsMERIDA CC | * 17mm inner width * material: aluminium
  • Rear HubShimano FH-TX505 | * 135x9mm width rear hub * 32 spoke holes * Centerlock
  • Front HubShimano HB-TX505 | * 100x9mm width front hub * 32 spoke holes * Centerlock
  • Rear TireMERIDA K1080 | * 29x2.2" * wire
  • Front TireMERIDA K1080 | * 29x2.2" * wire

    • Cockpit

  • StemMERIDA CC | * material: aluminium * 31.8mm diameter * 6ﾰ stem angle * 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
  • GripsMERIDA EC
  • HeadsetMERIDA M2345
  • HandlebarMERIDA CC | * material: aluminium * 690mm width * 15mm rise

    • Accessories

  • BellYWS-Alloy

    • Groupset

  • Chain / BeltKMC xGlide
  • CrankShimano CUES U4000 | * 32 teeth * MAT Aluminium * 170 mm-S, 175 mm-M up
  • PedalsVP VPE-891
  • CassetteShimano CS-LG300-9 | * 11-46 teeth * 9 speed
  • ShiftersShimano CUES U4000-9R
  • Chain CaseSP40
  • Bottom BracketShimano BB-UN101 73-123
  • Rear DerailleurShimano CUES U4000-9 | * GS

    • Saddle

  • SaddleMERIDA Sport comfort
  • Seat PostMERIDA CC | * 30.9mm diameter * 15mm setback * material: aluminium
  • Seat Post ClampMERIDA COMP QR

    • Suspension

  • ForkRock Shox Judy TK | * Coil * 100mm suspension travel Lockout * 46mm fork offset * 29x2.25" max. wheelsize
  • Fork typeFedergabel
  • Front suspension100mm
  • Fork ManufacturerRockShox
    • Disclaimer

    Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
