OrbeaTERRA M20iTEAM

We're sorry.

The checkout for this seller is not enabled. Please reach out to the seller directly using the form below, or visit them in store at the listed address.

Questions and Answers

Carbon
Shimano GRX Di2
28"
Diamond
Disc Brakes

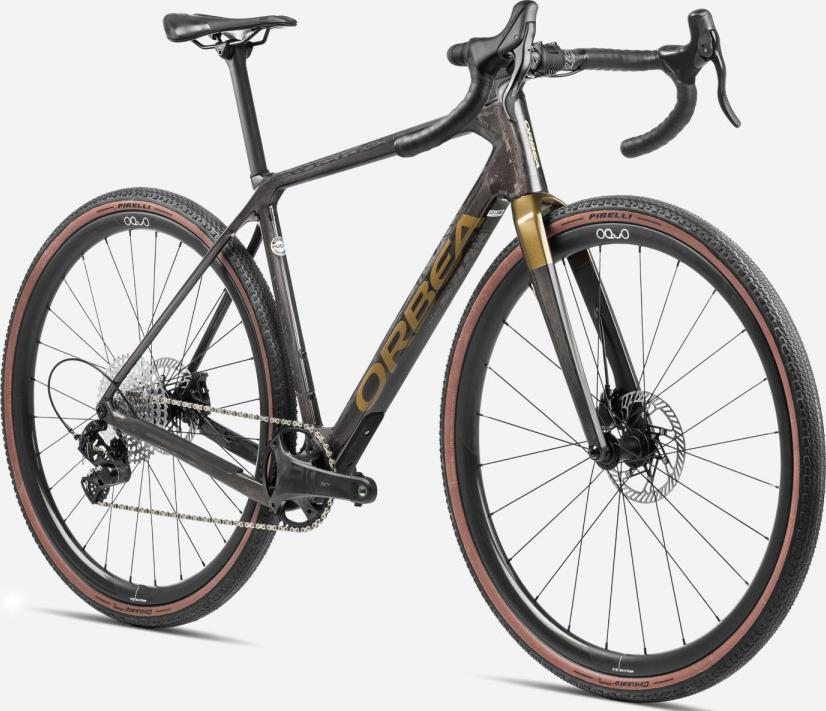

Experience the ultimate gravel bike ride with the Orbea TERRA M20iTEAM. This bike features a sleek carbon frame that offers a perfect balance of lightweight design and durability. It is equipped with Shimano RX820 disc brakes for outstanding braking power and a Shimano GRX Di2 groupset for seamless shifting. The frame is compatible with the Orbea Terra ICR carbon fork for added versatility. The Shimano ...read more

General

  • FrameOrbea Terra carbon OMR Disc, monocoque construction, HS 1,5", PF30, powermeter compatible, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, LOCKR service box

    • Brakes

  • BrakeShimano RX820 Hydraulic Disc

    • Wheels & Tires

  • TiresVittoria Terreno Dry CX-Gravel G2.0 TNT 700x38c
  • WheelsOquo Road Control RC25TEAM, carbon Mini Hook rim, Zipp ZR1 hub, SHIMANO HG freehub, 25mm internal width, Sapim CX-Sprint spokes, 700C
  • Wheel Size700.0
  • Rear HubOrbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded
  • Front HubOrbea Thru Axle 12x100mm M12x2 P1 Solid

    • Cockpit

  • StemOC Road Performance RP10, -8º
  • HeadsetFSA 1-1/2" Integrated Aluminium Cup
  • HandlebarEaston EC90 AX Carbon, flare 16º, Di2 internal routing

    • Accessories

  • StorageAccesories Containers

    • Groupset

  • Chain / BeltShimano M7100
  • CassetteShimano Ultegra R8100 11-34t 12-Speed
  • CranksetShimano GRX RX820 31x48t
  • ShiftersShimano GRX Di2 RX825
  • Rear DerailleurShimano GRX Di2 RX825
  • Front DerailleurShimano GRX Di2 RX825
  • GearingShimano GRX Di2

    • Saddle

  • SaddlePrologo Akero AGX STN size 155mm
  • Seat PostOC Performance XP10 Carbon, 27.2mm, Setback 0

    • Suspension

  • ForkOrbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
    • Disclaimer

    Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.

    About Orbea

    Orbea is a brand with a rich history, dating back to 1840 in Spain. Originally a gun manufacturer, they shifted to making bicycles in the 1930s - and the rest is history. Orbea stands out for its passion for creating bikes that blend innovation, performance, and sustainability. They believe in empowering riders, whether you're racing, commuting, or exploring the trails. Their product range is impressive, covering road bikes, mountain bikes, e-bikes, and urban rides, all crafted with precision and style. Riders rave about the comfort, quality, and performance of Orbea bikes, often highlighting the brand’s attention to detail. Whether you're a competitive athlete or a casual rider, Orbea has something for you. These bikes are perfect for anyone who values a mix of heritage, cutting-edge design, and a connection to the cycling community. Ready to ride? Orbea's got your back!
