2024
trek
Fuel_EX_9.8_XT_Gen_6

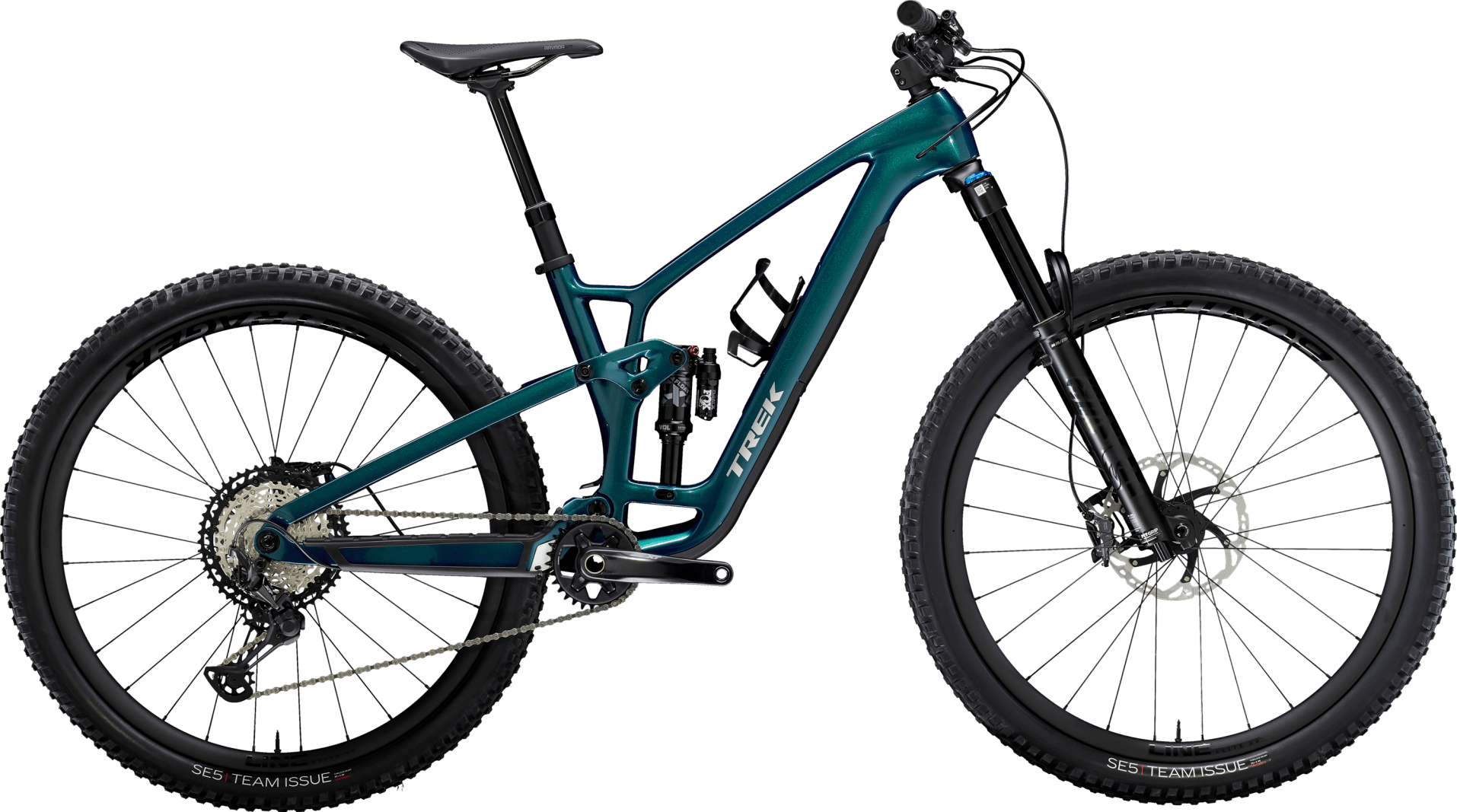

TrekFuel EX 9.8 XT Gen 6

We're sorry.

The checkout for this seller is not enabled. Please reach out to the seller directly using the form below, or visit them in store at the listed address.

Questions and Answers

Carbon
Shimano Deore XT
29"
Diamond
Disc Brakes
Fuel EX 9.8 XT L 29 Dark Aquatic

General

  • FrameOCLV Mountain Carbon, internal storage, angle-adjust headset, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
  • Frame materialCarbon

    • Brakes

  • RotorsShimano RT86, 6-bolt, 203 mm // Shimano RT86, 6-bolt, 180 mm
  • BrakeShimano XT M8120 4-piston hydraulic disc // Shimano XT M8120 4-piston hydraulic disc

    • Wheels & Tires

  • TiresBontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29x2.50"
  • Rear AxisBontrager Switch thru-axle, removable lever
  • Rear WheelBontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle, 29"
  • Front WheelBontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"

    • Cockpit

  • HeadsetIntegrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
  • GripsBontrager XR Trail Elite, nylon lock-on
  • Handlebar Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length

    • Groupset

  • Chain / BeltShimano Ultegra/XT M8100, 12-speed
  • CrankShimano XT M8120, 30T, 55 mm chain line, 170 mm length
  • CassetteShimano XT M8100, 10-51, 12-speed
  • ShiftersShimano XT M8100, 12-speed
  • Bottom BracketShimano BB-MT501 BSA
  • Rear DerailleurShimano XT M8100, long cage
  • GearingShimano Deore XT

    • Saddle

  • SaddleBontrager Arvada, austenite rails, 138 mm width
  • Seat PostBontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length

    • Suspension

  • ShockFox Performance Float X, 2-position damper, 185 mm x 55 mm
  • ForkFox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel
  • Fork typeSuspension Fork
  • Front suspension150mm
  • Fork ManufacturerFox
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. The specified model year corresponds to the model series defined by the manufacturer and not necessarily the year of manufacture. As some models are produced unchanged over several years, the year of manufacture may vary. Regardless of this, you will receive a current product in accordance with the stated specifications. Errors and omissions excepted.
