TrekMarlin 5 Gen 2 (26")

We're sorry.

The checkout for this seller is not enabled. Please reach out to the seller directly using the form below, or visit them in store at the listed address.

Questions and Answers

Aluminium
Shimano Altus
26"
Diamond
Disc Brakes

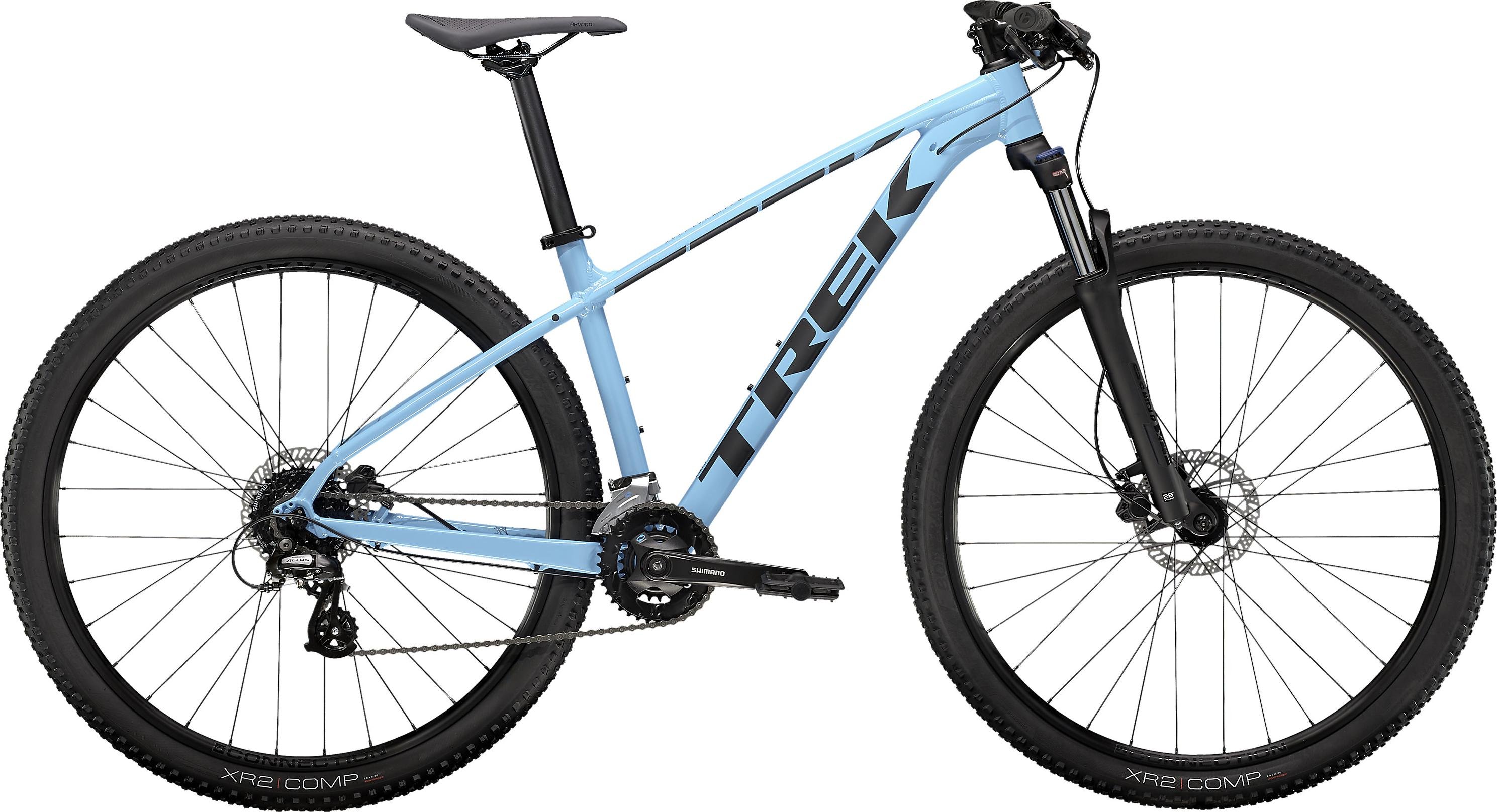

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2x8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

General

  • FrameAlpha Silver Aluminium, internal routing, rack and kickstand mount, 135x5 mm QR, Size XXS , XS , S: curved top tube, chainstay disc brake mount, Size M , ML , L , XL , XXL: chainstay disc-brake mount
  • Weight*M - 13.97 kg / 30.81 lb
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

    • Brakes

  • Brake Tektro HD-M275 hydraulic disc, 180 mm rotorTektro HD-M275 hydraulic disc, 160 mm rotor

    • Wheels & Tires

  • TiresBontrager XR2 Comp, wire bead, 30 tpi, Size XXS: 26x2.20", Size XS , S: 27.5x2.20", Size M , ML , L , XL , XXL: 29x2.20"
  • Rear Axis 152x5 mm QR
  • Wheels Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
  • Rear Hub Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
  • Front Hub Formula DC-20, alloy, 6-bolt, 5x100 mm QR

    • Cockpit

  • Stem31.8 mm, 7-degree, Size XXS: Bontrager alloy, Blendr-compatible, 35 mm length, Size XS: Bontrager alloy, Blendr-compatible, 50 mm length, Size S: Bontrager alloy, Blendr-compatible, 60 mm length, Size M: Bontrager Comp, Blendr compatible, 70 mm length
  • Headset Semi-integrated, 1-1/8"
  • HandlebarBontrager alloy, 31.8 mm, 5 mm rise, Size XXS , XS: 690 mm width, Size S , M , ML , L , XL , XXL: 720 mm width

    • Groupset

  • Chain / Belt KMC Z8.3, 8 speed
  • Crank36/22, Size XXS: Prowheel TM-CY10, 160 mm length, Size XS , S , M: Shimano M315, 170 mm length, Size ML , L , XL , XXL: Shimano M315, 175 mm length
  • Cassette Shimano 8-speed, 12-32T
  • Shifters Shimano Altus M315, 8-speed
  • Bottom Bracket Sealed cartridge, 73mm
  • Rear Derailleur Shimano Altus M310
  • Front Derailleur Shimano Altus M315, 34.9 mm clamp, top swing, dual pull
  • GearingShimano Altus, 2x8

    • Saddle

  • Saddle Bontrager Arvada, steel rails, 138 mm width
  • Seat PostBontrager alloy, Size XXS: 31.6 mm, 12 mm offset, 300 mm length, Size XS , S , M: 31.6 mm, 12 mm offset, 330 mm length, Size ML , L , XL , XXL: 31.6 mm, 12 mm offset, 400 mm length

    • Suspension

  • Forkcoil spring, preload, 100 mm QR, Size XXS: SR Suntour XCM 30, lockout, 100 mm travel, 26" wheel, Size XS: SR Suntour XCT 30, hydraulic lockout, 42 mm offset for 27.5" wheel, 80 mm travel, Size S: SR Suntour XCT 30, hydraulic lockout
  • Fork typesuspension fork
  • Front suspension100mm
  • Fork ManufacturerSR Suntour
    • Disclaimer

    Deviations between specified and installed components are possible depending on the delivery situation. Alternatively installed components correspond to the quality level of the specified components. The specified model year corresponds to the model series defined by the manufacturer and not necessarily the year of manufacture. As some models are produced unchanged over several years, the year of manufacture may vary. Regardless of this, you will receive a current product in accordance with the stated specifications. Errors and omissions excepted.
