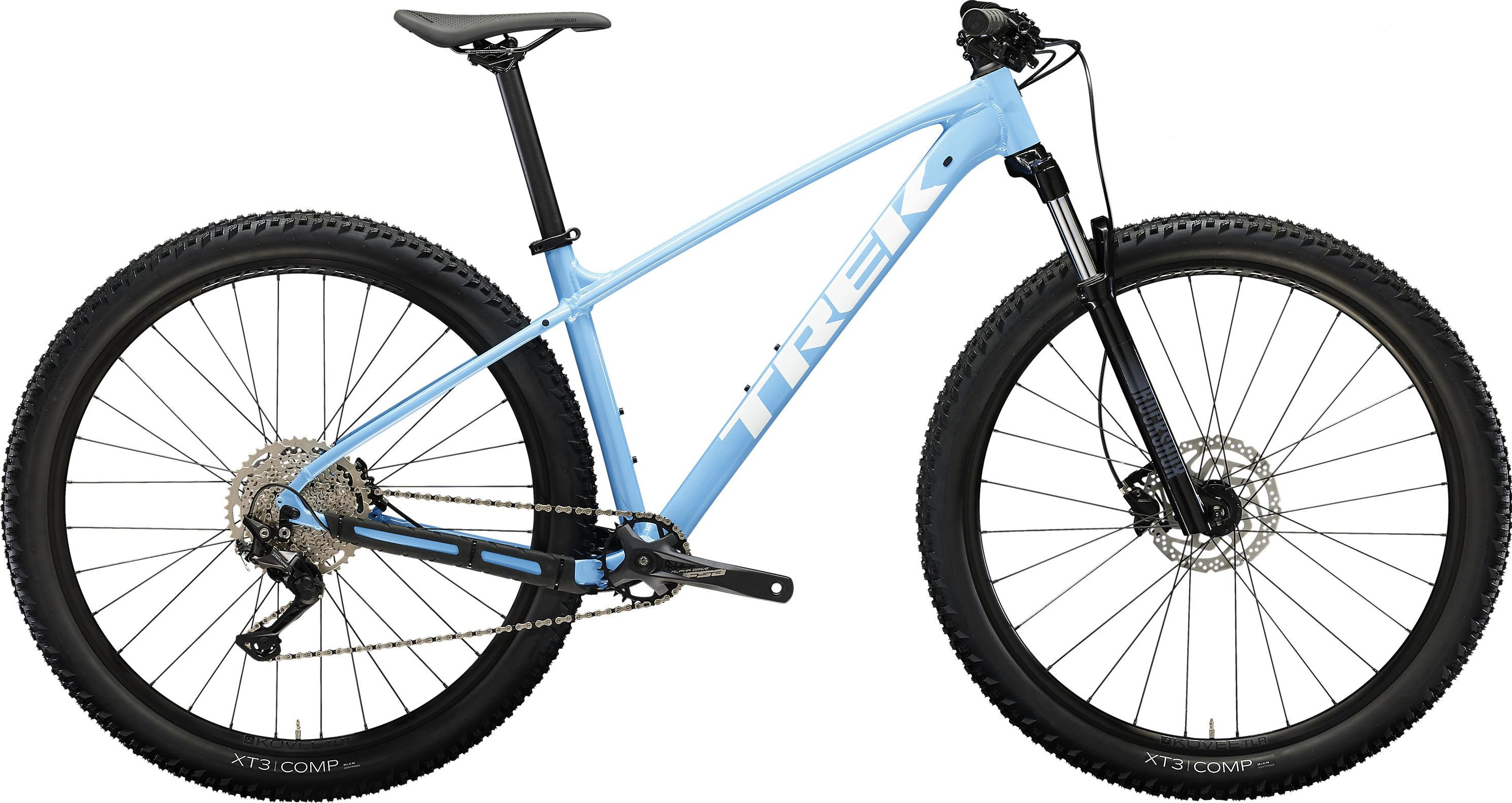

TrekMarlin 7 Gen 3

We're sorry.

The checkout for this seller is not enabled. Please reach out to the seller directly using the form below, or visit them in store at the listed address.

Questions and Answers

Aluminium
Shimano Deore
27.5"
Diamond
Disc Brakes
Marlin 7 is your best friend on the trail and wherever else you roll thanks to its confidence-boosting trail geometry. It offers the perfect balance between price and performance with an upgraded RockShox suspension fork that makes quick work of rocks and bumps in your path and precise Shimano Deore shifting.

General

  • FrameAlpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew, Size XS: curved top tube
  • Weight*M - 14.60 kg /
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs).

    • Brakes

  • Brake Shimano MT200 hydraulic disc Shimano MT200 hydraulic disc
  • RotorsShimano RT26, Size XS , S , M , ML , L , XL , XXL: 6-bolt,160 mm, Size M , ML , L , XL , XXL: 6-bolt,180 mm
  • Brake TypeHydraulic disc

    • Wheels & Tires

  • TiresBontrager XT3 Comp, wire bead, 30 tpi, Size XS , S: 27.5x2.40", Size M , ML , L , XL , XXL: 29x2.40"
  • WheelsBontrager Kovee, double-wall, 28-hole, 23 mm width, Presta valve, Size XS , S: Tubeless Ready, Size M , ML , L , XL , XXL: Tubeless-Ready
  • Rear Hub Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
  • Front Hub Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew
  • Rear Axis Bontrager Switch thru axle

    • Cockpit

  • Stem31.8 mm, 7-degree, Size XS , S: Bontrager alloy, Blendr-compatible, 35 mm length, Size M , ML , L: Bontrager alloy, Blendr-compatible, 50 mm length, Size XL: Bontrager alloy, Blendr-compatible, 60 mm length, Size XXL: Bontrager Comp, Blendr compatible
  • GripsBontrager XR Trail Comp, nylon lock-on
  • Headset Semi-integrated, 1-1/8"
  • HandlebarBontrager alloy, 31.8 mm, Size XS: 5 mm rise, 690 mm width, Size S: 15 mm rise, 720 mm width, Size M , ML , L , XL , XXL: 15 mm rise, 750 mm width

    • Groupset

  • Chain / BeltKMC X10, 10-speed
  • CrankFSA Alpha Drive, 28T steel ring, Boost, Size XS , S , M: 170 mm length, Size ML , L , XL , XXL: 175 mm length
  • Pedals Wellgo VPE-536
  • Cassette Shimano Deore M4100, 11-46, 10-speed
  • Shifters Shimano Deore M4100, 10 speed
  • Bottom Bracket FSA, 73 mm, threaded cartridge, 122.5 mm spindle
  • Rear Derailleur Shimano Deore M5120, long cage

    • Saddle

  • Saddle Bontrager Arvada, steel rails, 138 mm width
  • Seat PostBontrager alloy, 31.6 mm, 12 mm offset, Size XS , S , M: 330 mm length, Size ML , L , XL , XXL: 400 mm length

    • Suspension

  • ForkRockShox Judy, coil spring, preload, TurnKey lockout, 100 mm QR, 100 mm travel, Size XS , S: 42 mm offset for 27.5" wheel, Size M , ML , L , XL , XXL: 46 mm offset for 29" wheel
  • Fork typesuspension fork
  • Front suspension80mm
  • Fork ManufacturerRockShox
    • Disclaimer

    Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
