Rail_5_Gen_3

TrekRail 5 Gen 3

$7,499.00

RRP

-20%
$5,999.00

Incl. Taxes plus shipping

Colors
Sizes
Loading..

We're sorry.

The checkout for this seller is not enabled. Please reach out to the seller directly using the form below, or visit them in store at the listed address.

About the Seller

Location: 179 High Street, Prahran, Victoria, 3181, Australia
Estimated waiting time until collection: 2 – 5 days

Delivery Options

Shipping -- unavailable

ShippingConvenient online payment and delivery to your home.

Click & Collect -- available

Click & CollectPay securely online and collect directly from our local partner store.

Reserve in Store -- available

Reserve in StoreReserve online, buy directly in store: The reservation fee will be deducted from the purchase price.

Questions and Answers

Aluminium
500
Bosch
Shimano Deore
29"
Diamond
Disc Brakes

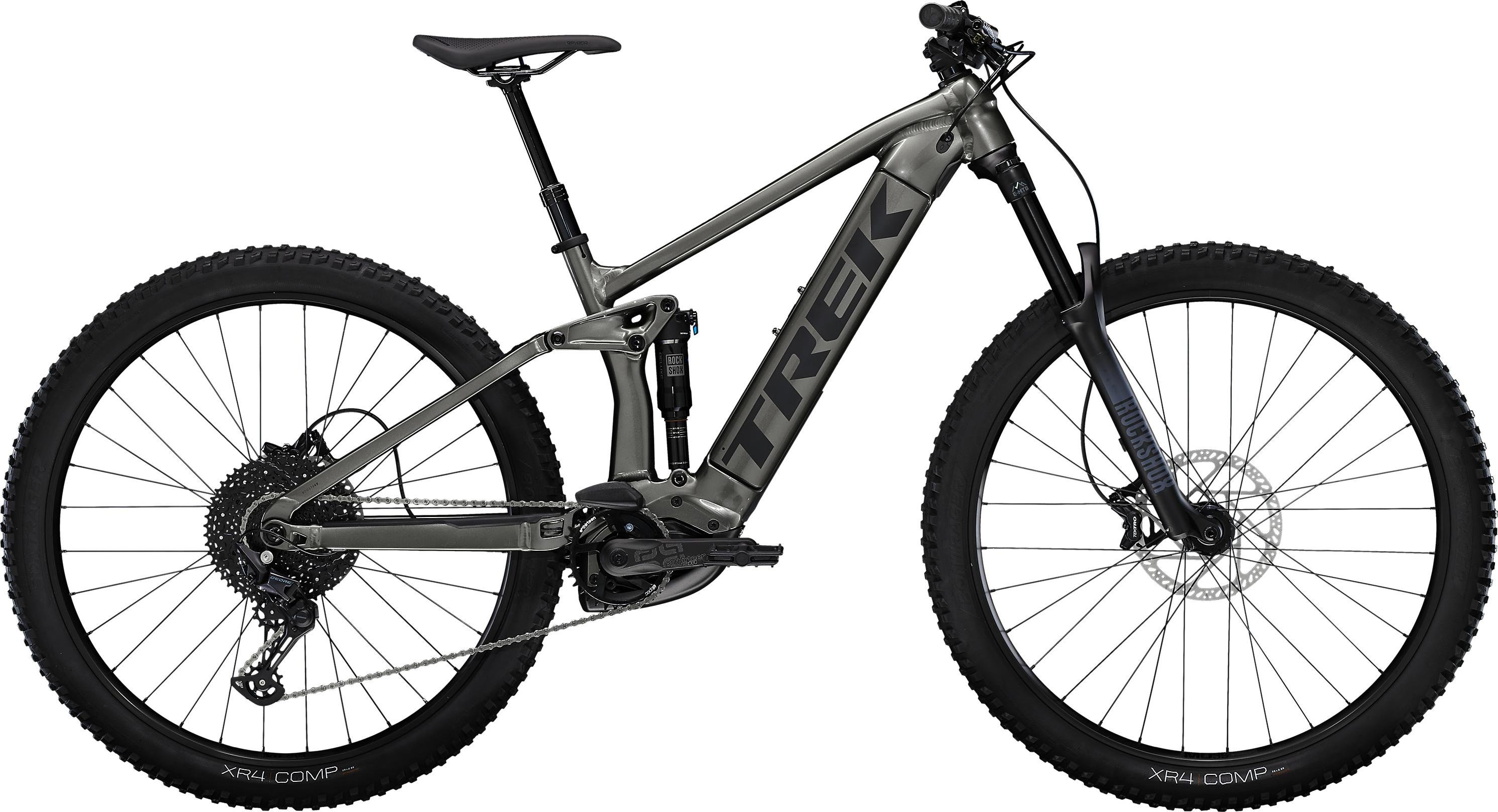

The Trek Rail 5 Gen 3 2023 is an electric mountain bike that strikes the perfect balance between performance, versatility, and user-friendliness. It's designed for riders who crave adventure, whether you’re just starting out or you’ve been shredding trails for years. Built from Alpha Platinum Aluminum, the frame is lightweight yet incredibly strong, which means it can handle whatever the outdoors ...read more

General

  • FrameAlpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
  • Frame materialAlloy

    • Brakes

  • BrakeShimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper // Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
  • RotorsMax brake rotor sizes - Frame: 200mm, Fork: see fork manufacturer | Shimano RT76, 6-bolt, 203 mm

    • Wheels & Tires

  • TiresBontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
  • WheelsAlex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
  • Rear HubBontrager alloy, loose bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
  • Front HubBontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
  • Rear AxisBontrager Switch thru-axle, removable lever

    • Cockpit

  • StemBontrager Rhythm Comp, 31.8 mm, 0-degree, 50 mm length
  • GripsBontrager XR Trail Comp, nylon lock-on
  • HandlebarBontrager alloy, 31.8 mm, 15 mm rise, 750 mm width

    • Motor & Battery

  • Motor ManufacturerBosch
  • Torque85 Nm
  • BatteryBosch PowerTube 500 Wh, smart system
  • Battery Capacity500 Wh
  • Battery ManufacturerBosch
  • MotorBosch Performance Line CX, smart system, magnesium motor body, 85 Nm
  • Motor PositionMid Engine
  • Maximum Motor Supportup to 25 kph

    • Groupset

  • Chain / BeltShimano Deore M6100, 12-speed
  • CrankE*thirteen E*spec Plus, 165 mm length
  • CassetteShimano Deore M6100, 10-51, 12-speed
  • ShiftersShimano Deore M6100, 12-speed
  • Rear DerailleurShimano Deore M6100, long cage
  • PedalsVP-536 nylon platform
  • GearingShimano Deore

    • Saddle

  • SaddleBontrager Arvada, steel rails, 138 mm width
  • Seat PostTranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
  • Seat Post ClampBolt-on, 36.4 mm

    • Suspension

  • ForkRockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel
  • Fork typeSuspension Fork
  • Front suspension160mm
  • Fork ManufacturerRockShox
  • ShockRockShox Deluxe Select+ RT, 230 mm x 57.5 mm
    • Disclaimer

    Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
