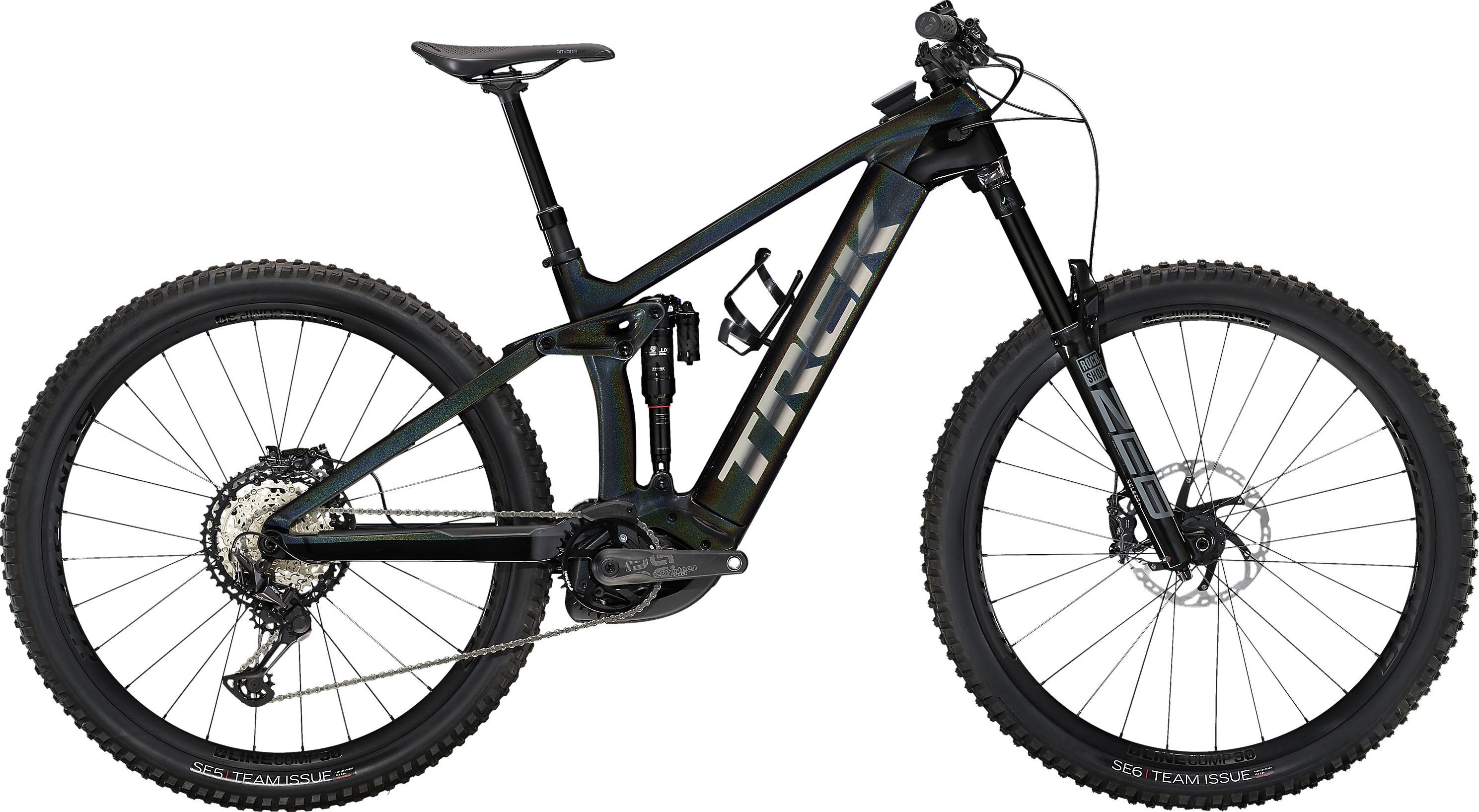

TrekRail 9.8 XT Gen 3

We're sorry.

The checkout for this seller is not enabled. Please reach out to the seller directly using the form below, or visit them in store at the listed address.

Questions and Answers

Carbon
750
Bosch
Shimano Deore XT
29"
Diamond
Disc Brakes
Introducing the Trek Rail 9.8 XT Gen 3 2023, the electric mountain bike that perfectly balances performance and versatility for mountain biking enthusiasts. This bike is designed for those who demand quality and reliability on rugged trails, making it an ideal choice for experienced riders as well as those eager to step up their game. Its cutting-edge features allow riders to tackle challenging terrain ...read more

General

  • Frame NEW OCLV Mountain Carbon main frame, 1.8" lower head tube, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9 mm seat tube, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
  • Weight*M - 23.40 kg / 51.59 lb (with TLR sealant, no tubes)
  • Maximum Weight AllowedThis bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

    • Brakes

  • Brake Shimano XT M8120 4-piston hydraulic disc
  • Rotors Shimano RT76, 6-bolt, 203 mm

    • Wheels & Tires

  • TiresBontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50" / Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50" *
  • Rear AxisBontrager Switch thru-axle, removable lever
  • Rear Wheel Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle
  • Front Wheel Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle

    • Cockpit

  • Stem Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length
  • GripsBontrager XR Trail Comp, nylon lock-on
  • Display Bosch Kiox 300, smart system
  • Handlebar Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width

    • Motor & Battery

  • Motor Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
  • Torque85 Nm
  • Battery Bosch PowerTube 750Wh, smart system
  • Charger Bosch standard 4A, 230V, smart system
  • Motor Positionmid-engine
  • Battery Capacity750 Wh
  • Motor ManufacturerBosch
  • Battery ManufacturerBosch
  • Maximum Motor Supportup to 25 kph

    • Groupset

  • Chain / Belt Shimano Ultegra/XT M8100, 12-speed
  • Crank E*thirteen E*spec Plus, 165 mm length
  • PedalsVP-536 nylon platform
  • Cassette Shimano XT M8100, 10-51, 12-speed
  • Shifters Shimano XT M8100, 12-speed
  • Chainrings E*thirteen, 34T, steel
  • Rear Derailleur Shimano XT M8100, long cage
  • GearingShimano Deore XT

    • Saddle

  • Saddle Bontrager Arvada, austenite rails, 138 mm width
  • Seat PostBontrager Line Elite Dropper, MaxFlow, internal routing, Size M: 150 mm travel, 34.9 mm, 440 mm length, Size L: 170 mm travel, 34.9 mm, 485 mm length, Size XL: 200 mm travel, 34.9 mm, 550 mm length

    • Suspension

  • Fork RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimised crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
  • Shock RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230 mm x 57.5 mm
  • Fork typesuspension fork
  • Front suspension160mm
  • Fork ManufacturerRockShox
    • Disclaimer

    Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
