trek
Rail_9_Gen_3

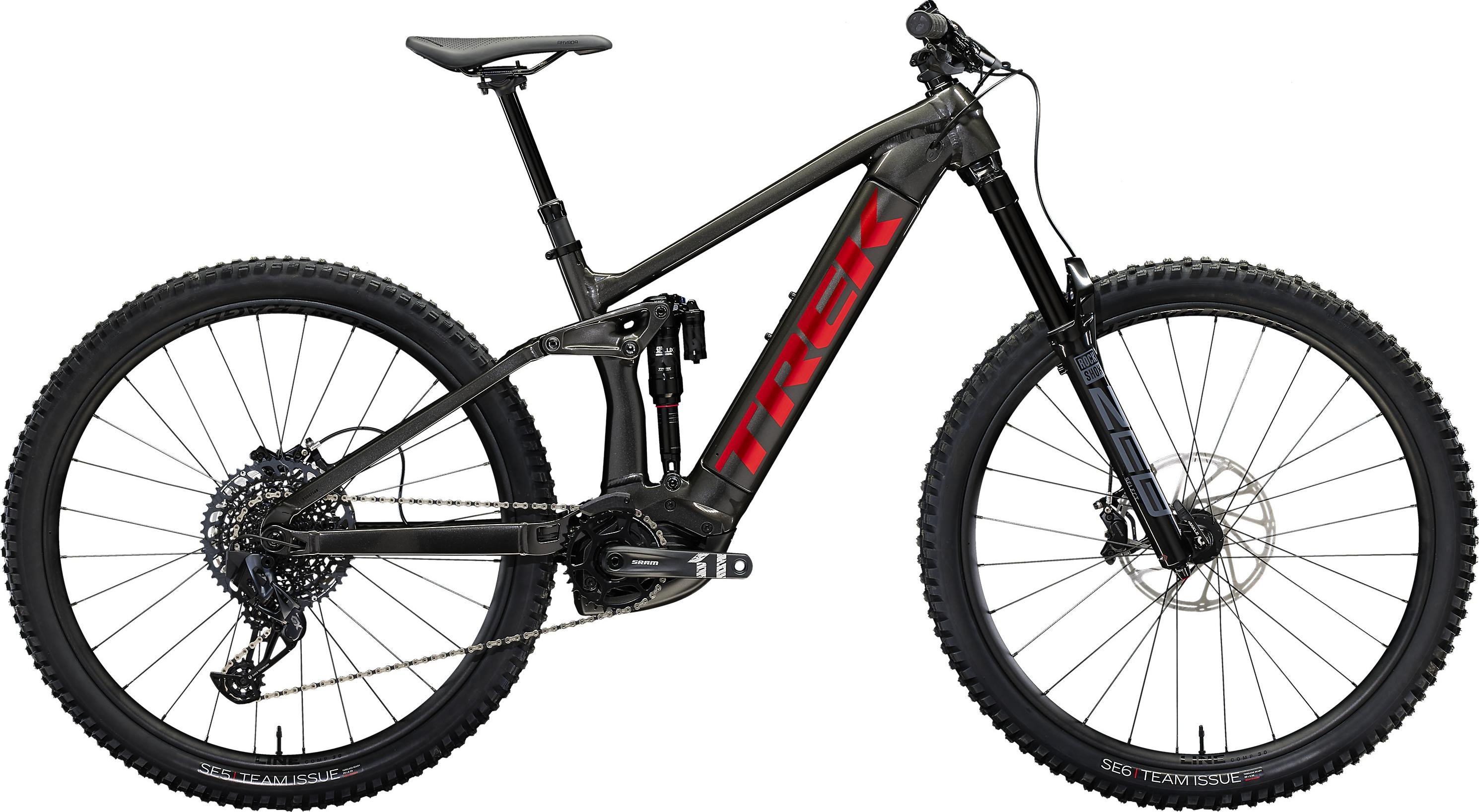

TrekRail 9 Gen 3

$10,999.00

RRP

-27%
$7,999.00

Incl. Taxes plus shipping

Colors
Sizes
Loading..

We're sorry.

The checkout for this seller is not enabled. Please reach out to the seller directly using the form below, or visit them in store at the listed address.

About the Seller

Location: 52 Erindale Rd, Balcatta, Western Australia, 6021, Australia
Estimated waiting time until collection: 2 – 5 days

Delivery Options

Shipping -- unavailable

ShippingConvenient online payment and delivery to your home.

Click & Collect -- available

Click & CollectPay securely online and collect directly from our local partner store.

Reserve in Store -- available

Reserve in StoreReserve online, buy directly in store: The reservation fee will be deducted from the purchase price.

Questions and Answers

Aluminium
625
Bosch
SRAM GX Eagle AXS
29"
Diamond
Disc Brakes
Introducing the Trek Rail 9 Gen 3 2023 – the ultimate electric mountain bike designed for those who crave adventure on rugged trails while enjoying the power of electric assistance. With its robust Alpha Platinum Aluminium frame, this bike offers not just durability but also lightweight performance. The integrated Removable Integrated Battery (RIB) means you can easily swap out the battery for a quick ...read more

General

  • FrameAlpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
  • Frame materialAlloy

    • Brakes

  • BrakeSRAM Code R 4-piston hydraulic disc
  • RotorsMax brake rotor sizes - Frame: 200mm, Fork: see fork manufacturer | SRAM CenterLine, 6-bolt, round-edge, 180mm // SRAM CentreLine, 6-bolt, round edge, 200 mm

    • Wheels & Tires

  • TiresBontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50" // Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
  • Rear AxisBontrager Switch thru-axle, removable lever
  • Front WheelBontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
  • Rear WheelBontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29"

    • Cockpit

  • StemBontrager Elite, 35 mm, 0-degree, 45 mm length
  • GripsBontrager XR Trail Elite, nylon lock-on
  • HandlebarBontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
  • ControllerBosch Intuvia 100, smart system

    • Motor & Battery

  • MotorBosch Performance Line CX, smart system, magnesium motor body, 85 Nm
  • Torque85 Nm
  • BatteryBosch PowerTube 625 Wh, smart system
  • ChargerBosch standard 4A, 230V, smart system
  • Motor PositionMid Engine
  • Battery Capacity625 Wh
  • Motor ManufacturerBosch
  • Battery ManufacturerBosch
  • Maximum Motor Supportup to 25 kph

    • Groupset

  • CrankSRAM X1 1000, 34T, 165 mm length
  • PedalsVP-536 nylon platform
  • CassetteSRAM Eagle XG-1275, 10-52, 12-speed
  • ShiftersSRAM GX Eagle AXS, 12 speed
  • ChainringsSRAM X-SYNC 2, 34T, alloy
  • Rear DerailleurSRAM GX Eagle AXS
  • Chain / BeltSRAM GX Eagle, 12-speed
  • GearingSRAM GX Eagle AXS

    • Saddle

  • SaddleBontrager Arvada, hollow chromoly rails, 138 mm width
  • Seat PostBontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 480 mm length

    • Suspension

  • ForkRockShox ZEB Select+, DebonAir spring, Charger 3 RC2 damper, eMTB optimised crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
  • ShockRockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230 mm x 57.5 mm
  • Fork typeSuspension Fork
  • Front suspension160mm
  • Fork ManufacturerRockShox
    • Disclaimer

    Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
