TrekTop Fuel 5

We're sorry.

The checkout for this seller is not enabled. Please reach out to the seller directly using the form below, or visit them in store at the listed address.

Questions and Answers

Aluminium
Shimano Deore
29"
Diamond
Disc Brakes

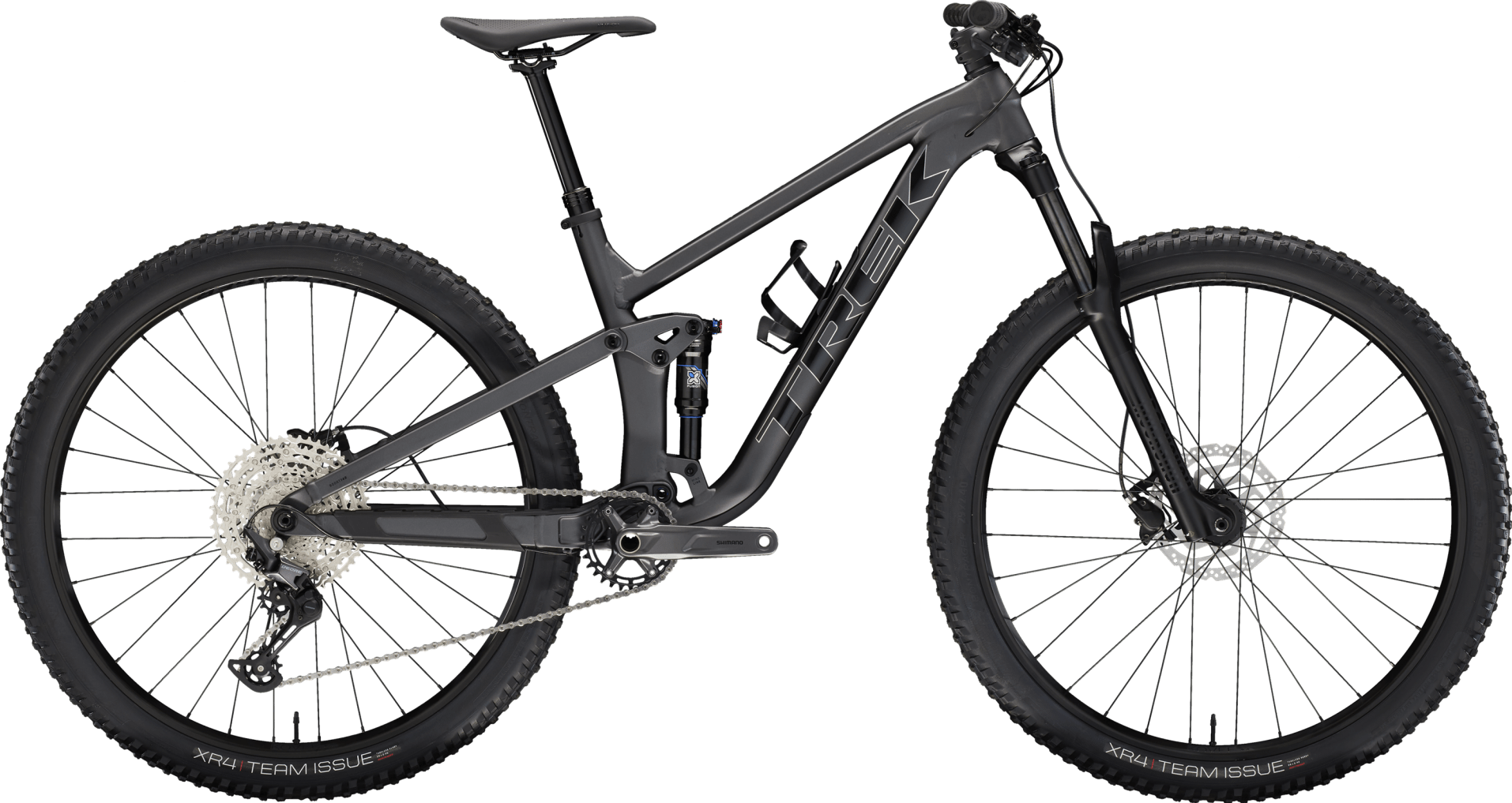

Top Fuel 5 Deore L Matte Dnister Black

General

  • FrameAlpha Platinum Aluminium, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
  • Frame materialAlloy

    • Brakes

  • BrakeShimano MT200 hydraulic disc // Shimano MT200 hydraulic disc
  • RotorsMax brake rotor sizes – Frame: 180 mm, Fork: see fork manufacturer | Shimano RT26, 6-bolt,180 mm

    • Wheels & Tires

  • TiresBontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40"
  • Rear HubBontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
  • Front HubBontrager alloy, 6-bolt, Boost110, 15 mm thru-axle
  • Rear AxisBontrager Switch thru-axle, removable lever

    • Cockpit

  • StemBontrager Rhythm Comp, 31.8 mm, 0-degree, 50 mm length
  • GripsBontrager XR Trail Comp, nylon lock-on
  • HandlebarBontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
  • HeadsetKnock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom

    • Groupset

  • Chain / BeltShimano Deore M6100, 12-speed
  • CrankShimano MT512, 30T ring, 55 mm chain line, 170 mm length
  • CassetteShimano Deore M6100, 10-51, 12-speed
  • Bottom BracketShimano BB-MT501 BSA
  • Rear DerailleurShimano Deore M6100, long cage
  • ShiftersShimano Deore M6100, 12-speed
  • GearingShimano Deore

    • Saddle

  • SaddleBontrager Arvada, steel rails, 138 mm width
  • Seat PostTranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length

    • Suspension

  • ForkRockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 130 mm travel
  • Fork typeSuspension Fork
  • Front suspension130mm
  • Fork ManufacturerRockShox
  • ShockX-Fusion Pro 2, 2-position damper, 185 mm x 50 mm
    • Disclaimer

    Depending on the situation, differences or deviations between specified and installed components are possible. Alternatively, installed components correspond to the quality level of the selected components. Errors and omissions are excepted.
